The Graham Utilities for OS/2 - Version 2

Communication Port Tests

The Communications Port Tests menu gives you the choice of testing either the serial ports or the parallel ports in your system.

Serial Port Tests

Choosing the Serial Port Tests option allows you to test the serial ports. A serial port must be chosen in order to be tested.

The actual number of serial ports displayed will be dependant on the number of serial ports in your system.

Once a particular serial port has been chosen for testing, the choice of either reporting on the current serial port status or testing the serial port output lines is presented to you:

Serial Port Information

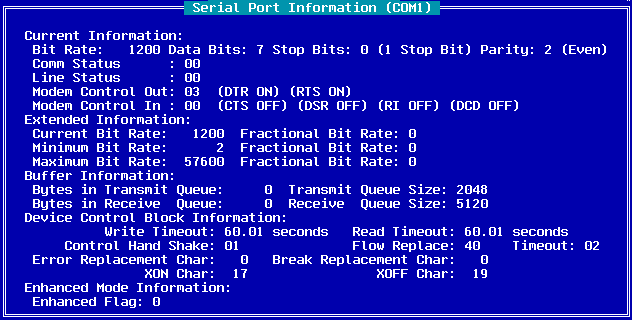

The Serial Port Information menu will present a dialog box similar to the following:

The Serial Port Information dialog box lists the current status of your com port. It is divided into a number of groups.

Current Information:

Bit Rate

The Bit Rate field is a binary integer representing the actual bit rate (bits-per-second) which the physical driver uses to set the bit rate of the COM device. The recommended bit rate values are:

110, 150, 300, 600, 1200, 1800, 2000, 2400, 3600, 4800, 7200, 9600, 19200, 38400, 57600 and 115200.

Data Bits

00h-04h: Reserved
05h: 5 data bits
06h: 6 data bits
07h: 7 data bits (initial value)
08h: 8 data bits
09h-FFh: Reserved

Stop Bits

00h: 1 stop bit (initial value)
01h: 1.5 stop bits (valid with 5-bit WORD length only)
02h: 2 stop bits (not valid with 5-bit WORD length)
03h-FFh: Reserved

Parity

00h: No parity
01h: Odd parity
02h: Even parity (initial value)
03h: Mark parity (parity bit always 1)
04h: Space parity (parity bit always 0)
05h-FFh: Reserved

Comm Status

Please consult the OS/2 programming documentation for the full description of this value.

Line Status

Returned as bit-significant values. If the bit is 1, the condition is TRUE. If the bit is 0, the condition is FALSE. The number at the beginning of the description is the bit position number. The bit positions go from least to most significant.

Bit 0: WRITE request packets in progress or queued
Bit 1: Data in the physical device driver transmit queue
Bit 2: Transmit hardware is currently transmitting data
Bit 3: Character waiting to be transmitted immediately
Bit 4: Waiting to automatically transmit an XON
Bit 5: Waiting to automatically transmit an XOFF
Bit 6: Undefined
Bit 7: Undefined

Modem Control Out

If a bit has a value of 1, the condition is on. If a bit has a value of 0, the condition is off.

Bit 0: Data Terminal Ready (DTR)
Bit 1: Request To Send (RTS)
Bits 2-7: Undefined

Modem Control In

If a bit has a value of 1, the condition is on. If a bit has a value of 0, the condition is off.

Bit 0-3: Undefined
Bit 4: Clear To Send (CTS)
Bit 5: Data Set Ready (DSR)
Bit 6: Ring Indicator (RI)
Bit 7: Data Carrier Detect (DCD)

Extended Information:

Current Bit Rate: The binary integer representing the actual bit rate in bits-per-seconds set for a COM port.
Fractional Bit Rate: The binary integer representing the fraction of the actual current bit rate set for a COM port.
Minimum Bit Rate: The binary integer representing the minimum bit rate (in bits-per-second) port for a COM port.
Fractional Bit Rate: The binary integer representing the fraction of the minimum bit rate supported for a COM port.
Maximum Bit Rate: The binary integer representing the maximum bit rate (in bits-per-second) supported for a COM port. Depending on overall system overhead and the electrical characteristics of the hardware cables and serial device adaptor type, the actual value of the maximum bit rate supported might be lower than this.
Fractional Bit Rate: The binary integer representing the fraction of the maximum bit rate supported for a COM port.

Buffer Information:

Bytes in Transmit Queue: Binary integer with the number of characters ready to be transmitted in the physical device driver transmit queue. This is a memory buffer between the memory pointed to by the WRITE request packet and the transmit hardware for this COM device.
Transmit Queue Size: Binary integer with the size of the physical device driver transmit queue.
Bytes in Receive Queue: Binary integer with the number of received characters in the device driver receive queue. This is a memory buffer between the memory pointed to by the READ request packet and the receive hardware for this COM device.
Receive Queue Size: Binary integer with the size of the physical device driver receive queue.

Device Control Block Information:

Write Timeout

Specifies the time period used for Write Timeout processing.

Read Timeout

Specifies the time period used for Read Timeout processing.

Control Handshake

Has the following bits:

Bits 0-1 DTR Control mode. Has the following:
   Bit 1   Bit 0   Description
   0       0       Disable
   0       1       Enable
   1       0       Input handshaking
   1       1       Invalid input. Results in a general failure error.
Bit 2    Reserved (returned as 0)
Bit 3    Enable output handshaking using CTS
Bit 4    Enable output handshaking using DSR
Bit 5    Enable output handshaking using DCD
Bit 6    Enable input sensitivity using DSR
Bit 7    Reserved (returned as 0)

Flow Replace

Has the following bits:

Bit 0    Enable Automatic Transmit Flow Control (XON/XOFF)
Bit 1    Enable Automatic Receive Flow Control (XON/XOFF)
Bit 2    Enable error replacement character
Bit 3    Enable null stripping (remove null bytes)
Bit 4    Enable break replacement character
Bit 5    Automatic Receive Flow Control
          0 = Normal
          1 = Full-Duplex
Bits 6-7    RTS Control mode. Has the following:
        Bit 7   Bit 6   Description
        0       0       Disable
        0       1       Enable
        1       0       Input handshaking
        1       1       Toggling on transmit

Timeout

Has the following bits:

Bit 0     Enable Write Infinite Timeout processing
Bits 1-2  Read Timeout processing. Has the following:
       Bit 2   Bit 1   Description
       0       1       Normal Read Timeout processing
       1       0       Wait-For-Something, Read Timeout processing
       1       1       No-Wait, Read Timeout processing
Bits 3-4  Extended Hardware Buffering. Has the following:
       Bit 4   Bit 3   Description
       0       0       Not supported
       0       1       Extended Hardware Buffering Disabled
       1       0       Extended Hardware Buffering Enabled
       1       1       Automatic Protocol Override
Bits 5-6  Receive Trigger Level. Has the following:
       Bit 6   Bit 5   Description
       0       0       1 character
       0       1       4 characters
       1       0       8 characters
       1       1       14 characters
Bit 7     Transmit Buffer Load Count
       0 = 1 character
       1 = 16 characters

Error Replacement Char

This is the error replacement character. Please consult the OS/2 programming documentation for a complete description of this value.

Break Replacement Char

This is the break replacement character. Please consult the OS/2 programming documentation for a complete description of this value.

XON Char

This is the XON character. Please consult the OS/2 programming documentation for a complete description of this value.

XOFF Char

This is the XOFF character. Please consult the OS/2 programming documentation for a complete description of this value.

Enhanced Mode Information:

Enhanced Flag

Bit 0     Enhanced mode supported by hardware.
Bit 1     Enable the Enhanced mode (default)
Bits 2-3  DMA Receive Operation request. Has the following:
       Bit 3   Bit 2   Description
       0       0       Disable DMA Receive Capability
       0       1       Enable DMA Receive Capability (Default)
       1       0       Dedicate a DMA channel to Receive operation
       1       1       Reserved
Bits 4-5  DMA Transmit operation request. Has the following:
       Bit 5   Bit 4   Description
       0       0       Disable DMA Transmit Capability
       0       1       Enable DMA Transmit Capability (Default)
       1       0       Dedicate a DMA channel to Transmit operation
       1       1       Reserved
Bit 6     Receive operation in DMA mode
Bit 7     Transmit operation in DMA mode

Serial Port Output Test

If the serial port output test failed you will be presented with this dialog box:

If the serial port test passes, you will see a similar dialog box to this:

As there is no loop back connector supplied, only a minimal test can be performed.

Please note: As the system boots OS/2 performs significant testing of the system. If there are problems with the comm ports, the COM.SYS driver will not install and you will be notified of an error.

Parallel Port Tests

Choosing the Parallel Port Tests option allows you to test the serial ports. A parallel port must be chosen in order to be tested.

The actual number of parallel ports displayed will be dependant on the number of parallel ports in your system.

Once a particular parallel port has been chosen for testing, you are presented with the choice of either reporting on the current parallel port status or testing the parallel port output lines is presented to you:

Parallel Port Information

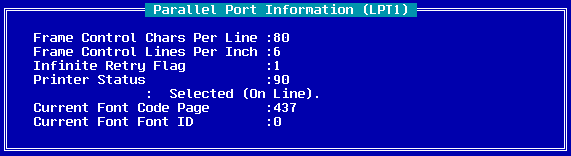

Choosing the Parallel Port Information menu will present a dialog box similar to the following:

Frame Control

Chars Per Line Valid characters per line (CPL) value. For the SBCS code page, valid values are 80 and 132.

Frame Control

Lines Per Inch Valid lines per inch (LPI) value. For the SBCS code page, valid values are 6 and 8.

Infinite Retry Flag

0: Disable infinite retry
1: Enable infinite retry

Printer Status

Bit 7: 0x80 1 = Not Busy
Bit 6: 0x40 1 = Acknowledge
Bit 5: 0x20 1 = Out of Paper
Bit 4: 0x10 1 = Selected
Bit 3: 0x08 1 = I/O Error
Bit 2: 0x04 Unused
Bit 1: 0x02 Unused
Bit 0: 0x01 1 = Timeout

Current Font Code Page

This is the currently active code page.

0000H: If the Code Page value and Font ID are returned as zero, the printer is set to the hardware default code page and font.
0001H-FFFFH: Valid code page numbers.

Current Font Font ID

This is the ID value of the font which is currently active.

0000H: If the Code Page value and Font ID are specified as zero, the printer is set to the hardware default code page and font. If Font ID is zero and code page is non zero, no error is returned if any Font ID is available for the specified code page.
0001H-FFFFH: Valid Font ID numbers; font types defined by the font file definitions for down loadable fonts. For cartridge fonts, Font IDs are the numbers on the cartridge label, and are also entered in the DEVINFO statement for the printer.

Note : If the chosen parallel port has been assigned to a network printer, the information displayed will be that of the remote printer.

Parallel Port Output Test

Choosing the Parallel Port Output Test presents you with this menu.

Choosing either the PCL Output Test (for HP LaserJet and compatible printers) or the PostScript Output Test will print the WarpSpeed Computers logo. The Generic Text Output Test will print the following test lines:

          WarpSpeed Computers Diagnostic Test Print
                        Generic Text

Successfully printing the files indicates that both the printer and spooler sub systems are functioning correctly.
